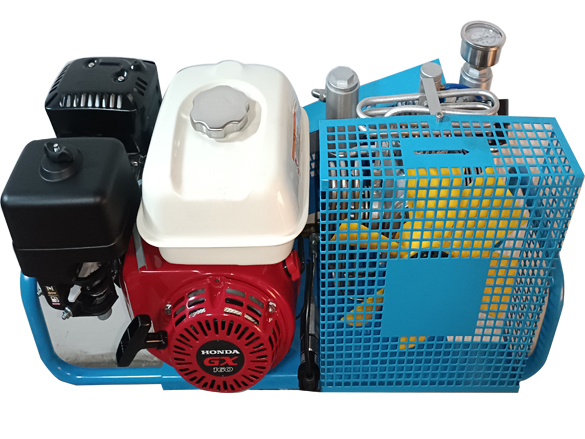

HC-X100/EM/ET/SH

main parameter

Model: HC-X100/EM/ET/SH

Work pressure: 30Mpa megapascal (300bar)

Displacement (suction state): 100L/min

Type: X-shaped layout - four cylinder four stage reciprocating piston compression

Drive: Electric 220V/50Hz/2.2kw or 380V/50Hz/3kw or 440V/60hz or Honda gasoline engine drive

Lubrication method: splash lubrication

Cooling method: air cooling

Control mode: manual shutdown or (optional automatic shutdown when pressed)

Clean air: 1 air filtration, 1 oil-water separation, 1 air purification

Safety device: final installation valve, transmission part installation protective cover

Packaging dimensions (length x width x height): 65 x 38 x 38cm

Weight: 41kg

This product is certified with CE certification, air breathing test report, and material testing report of the same series

working principle

This product is mass-produced according to the design changes and optimization of Italian models. The final piston adopts special technology, the piston ring adopts Japanese Riken technology, and all casting products are cast by outsourced professional large factories. The product has been on the market for more than ten years and has received unanimous praise from users. This product adopts four cylinder four stage compression, splash lubrication, final safety valve and filtration system. HC-X100 can provide safe compressed air for any industry that requires high-pressure and pure gas sources, and provide safe compressed air that meets human respiratory requirements. This product is designed, produced, and tested in accordance with the requirements of GB/T 12929-2008 "Marine High Pressure Piston Air Compressors"; The air quality meets the EN12021 international respiratory compressor breathing standard; HC-X100 is an air compression device that compresses 1 kilogram (1 bar/0.1 MPa) of air in a free state to a high-pressure gas with a gauge pressure of 300 kilograms (300 bar/30 MPa). After passing through the separator and filter in the unit, the air removes oil and impurities contained in the high-pressure air, and can filter fine particulate matter (PM2.5) in the inhaled air to a safe value of less than 10 micrograms, which meets the standards set by the World Health Organization. The discharged gas is clean and odorless, providing personnel with highly purified, clean, odorless, safe and reliable compressed breathing air.

Product Features

The rotating parts are equipped with protective covers to ensure the safety of operators;

High strength nylon cooling fan, with better heat dissipation effect;

Four cylinder four stage compression, low compression ratio, reliable performance;

Motor driven or gasoline engine driven to meet gas supply needs under various conditions;

Splash type high-efficiency lubrication;

Air filter (paper filter element)

Oil water separator (standard manual drain)

Air purification system (standard manual discharge) consists of activated carbon, molecular sieve, and carbon monoxide absorbing molecules, forming a triple breathing air purification system. The reusable packing cylinder is easy to replace and saves costs

Manual shutdown function (optional automatic shutdown)

Final safety valve, automatic overpressure relief

Seismic pressure gauge 0-5800psi/400bar

The compressor base is finely manufactured and durable;

Stainless steel cooling system;

application area

Firefighting breathing application: equipped in various fire supply stations or fire vehicles, it provides emergency gas supply at the scene of a fire or during emergency rescue processes, allowing firefighters to breathe highly purified, clean, odorless, safe and reliable compressed air in various environments such as thick smoke, toxic gas, steam or oxygen deficiency, thereby ensuring that firefighters can safely and effectively carry out firefighting, emergency rescue, disaster relief and first aid.

Diving breathing applications: providing highly purified, clean, odorless, safe and reliable compressed breathing air for divers in diving clubs, diving enthusiasts, offshore aquaculture, marine rescue, onboard equipment, underground operations, fishing, aquaculture, salvage, underwater engineering, water parks, shipbuilding and other industries. Fill the high-pressure gas cylinder with air for human respiration in an environment that cannot meet the normal breathing needs of the human body.

Application of catapult: High pressure air compressor compresses the air in the atmosphere through mechanical means, increases its pressure, and generates high-pressure gas. These high-pressure gases are stored as the power source for the thrower. When it is necessary to launch, high-pressure gas is quickly released through the pipeline, pushing the piston or similar mechanism inside the thrower to quickly throw out lifebuoys, ropes, or other items.

Application of airtightness testing: mainly used for airtightness inspection and pressure resistance testing of various pressure vessels, high-pressure gas cylinders, valves, pipelines and other equipment, strength testing of various industrial high-precision stainless steel welded pipes, titanium and gold welded pipe materials, high-pressure vessels and automotive parts pressure, pressure element and other materials, pressure resistance and rupture strength testing of various precision instruments and special equipment, non-destructive testing of aviation hoses, precision instruments and other materials and equipment, airtightness testing of various petroleum tools, calibration and pressure resistance testing of various safety valves, etc., in order to eliminate safety hazards of various equipment and materials.

CS shooting application: High pressure air compressors can provide stable and high-quality compressed air, which is crucial for shooting. By high-pressure inflation, it is possible to ensure sufficient thrust during the firing process, thereby improving the stability and accuracy of the shooting. In situations where pneumatic machinery is used or rapid continuous shooting is required, high-pressure air compressors can quickly supply compressed air to the equipment to meet these special needs, such as CS paintball shooting, shooting sports carried out by various universities, etc.
